Installation Tips of High Pressure Rubber Hose
Here are several installation tips for you to guide you install the high pressure rubber hose onto your equipment easily and fast. Besides, there are drawings of right and wrong installation method to help you avoid wrong installation.
Avoid distorting assembly. When moving the parts, it may cause the hose twisted, so you should avoid distorting assembly. Assemble it when it is confirmed smooth and right.
Right installation: without twisting.

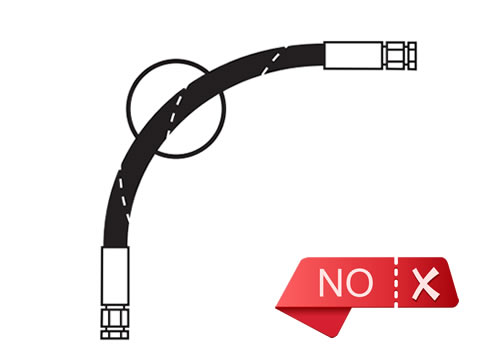

Wrong installation: distorting assembly.

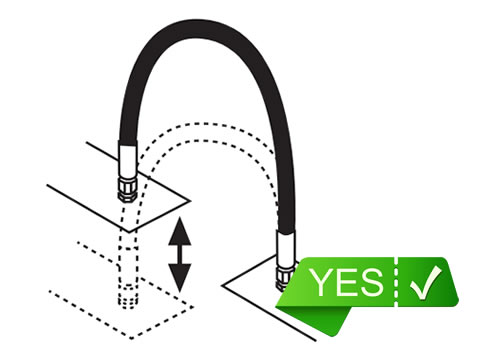

Right installation – upright installation.

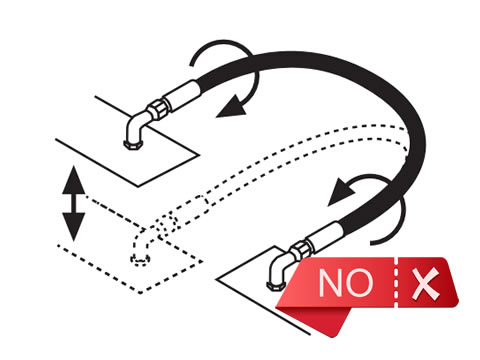

Wrong installation – horizontal installation.
Avoid the tight bend radius. so please use the proper fittings. Do not begin to bend closer than 1.5 times hose diameter to the ferrule.

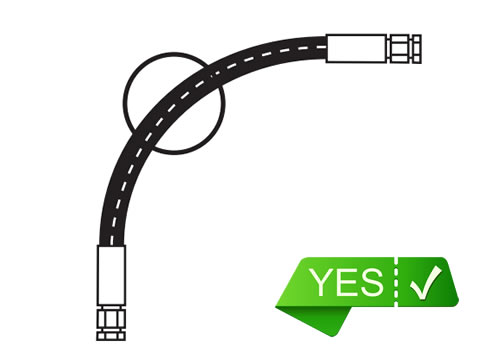

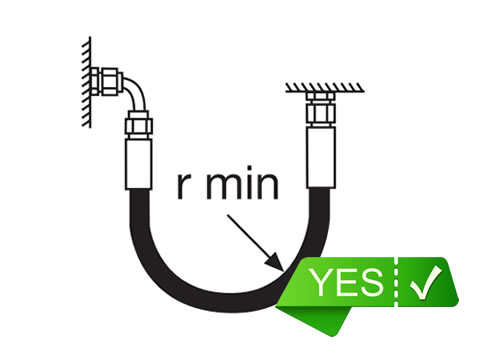

Right installation – actual radius is larger than minimum radius.

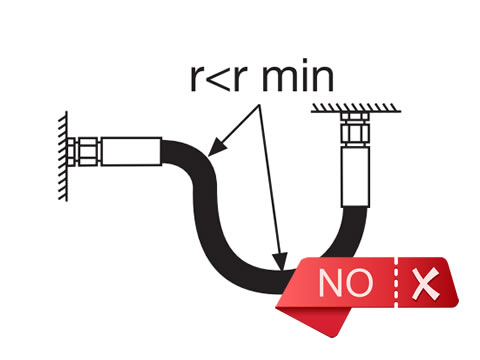

Wrong installation – the actual radius is smaller than minimum radius.

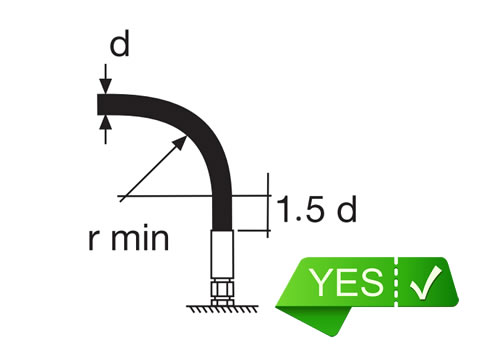

Right installation – start point leaves at least 1.5 times of diameter to the ferrule.

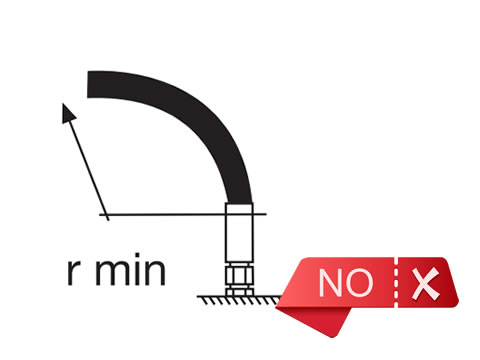

Wrong installation – begin to bend lower than 1.5 times of diameter to the ferrule.

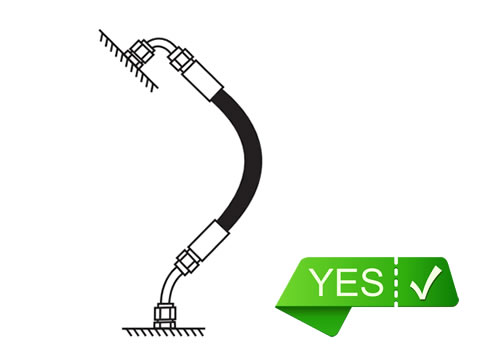

Right installation – suitable fitting for suitable radius.

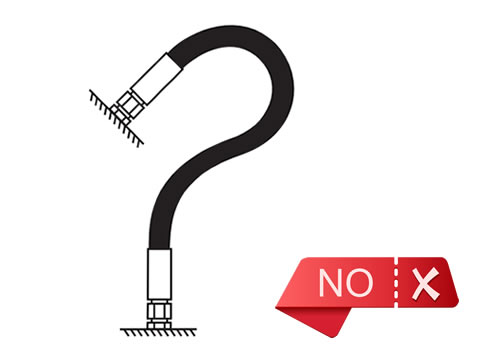

Wrong installation – improper fitting cause tight bend.
Avoid contacting with objects. It may cause abrasion or damage. So in the process of application, please pay particular attention to specify the hose length to avoid tensile stress or abrasion.

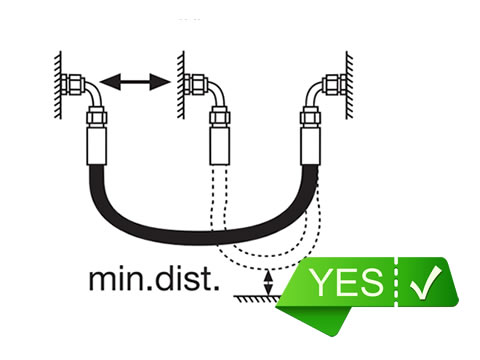

Right installation – suitable distance for far away from subject.

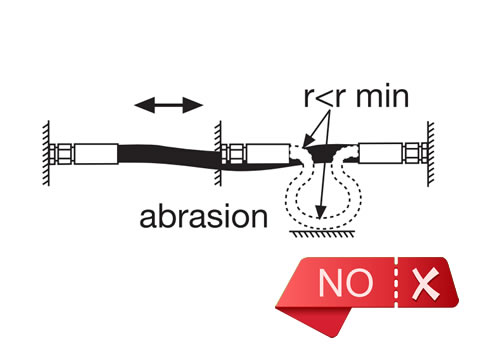

Wrong installation – smaller distance with subject may cause abrasion.

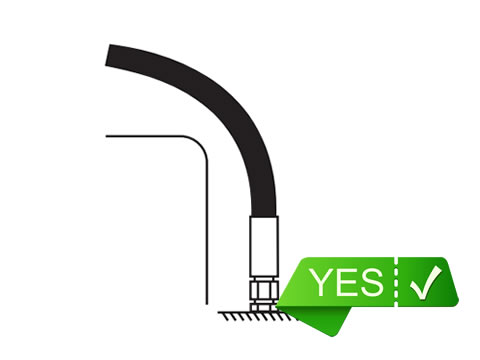

Right installation – adjust radius to avoid contacting with abrasive subjects.

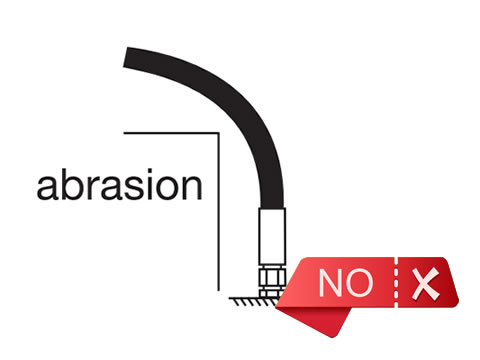

Wrong installation – direct contact with abrasive subjects.
