Tianjin Henghua Pipeline Technology Co., Ltd. is a leading company in manufacturing high pressure hoses and our products are sold very well both at home and abroad. High pressure hoses - the most important part of modern equipment, are widely used for all hydraulic systems, gas and water supply to deliver fluids under pressure (oils, fats, emulsions and others).
Hoses are made of different materials with different technologies depending on the operating environment, limiting pressure, climatic conditions and the fluids that they convey. Our high pressure hose products give the best solutions for customers to solve the fluids problems in hydraulic systems.
Steel wire reinforced hydraulic hoses include many kinds of rubber hoses, such as SAE 100 R1/R2/R5, EN 853 1SN/2SN, EN 857 1SC/2SC and so on. Most of rubber hoses are composed of three parts: inner tube, reinforcement layer and cover. The inner tube and the cover are commonly made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone and aging. The reinforcement layer is made of spiral or braided steel wire or fiber fabrics, making the hose solid structure and resistant to high pressure.
Steel wire spiraled hydraulic hoses also include many kinds of rubber hoses, such as EN 856 4SH/4SP, SAE 100 R12/R13/R15 and so on. They are composed of three parts: inner tube, reinforcement and cover. The inner tube and cover are made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, oils, weather, ozone, aging, cut and sunlight. Therefore, the hose is suitable for delivering petroleum-based hydraulic oils. The reinforcement is made from multiple layers of high tensile spiraled steel wire, making the hose highly resistant to high pressure. Thus, this kind of rubber hose is suitable for extremely high pressure environment.
Textile reinforced hydraulic hose is easy to operate for its excellent flexibility. It is composed of three parts: inner tube, reinforcement layer and cover. The inner tube and the cover are made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, oils, weather, ozone and aging. The reinforcement layer is made from multiple layers of braided textile, making the hose flexible and lightweight.
Thermoplastic hydraulic hose is suitable for delivering petroleum or water based hydraulic fluids in the suitable working temperature. It is composed of three parts: inner tube, reinforcement layer and cover. The inner tube and the cover are made from high quality thermoplastic and the reinforcement layer is made from high quality synthetic fiber. Therefore, the hose is flexible and lightweight and it has long service life.
Rotary drilling hose is mainly used to deliver water-based, oil-based mud or other fluids in suitable working temperature. It is mainly used for oil exploration, cement repairing, geological exploration and water conveyance for coal excavation. It is also composed of three parts: tube, reinforcement and cover. The tube and the cover are made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, oils, weather, ozone, aging and sunlight. The reinforcement is made from 2-8 layers of high tensile spiraled steel wire, making the hose work well in high pressure environment.
High pressure steam hose is suitable for transferring high temperature steam. It is composed of three parts: inner tube, reinforcement layer and cover. The tube and the cover are made from high quality EPDM, making the hose resistant to high temperature, abrasion, corrosion, weather, ozone and aging. The reinforcement layer is made from two layers of high tensile braided steel wire, making the hose resistant to high pressure.
Steel Wire Reinforced Hydraulic Hose
We supply complete steel wire reinforced hydraulic hoses, including EN 853 1SN, SAE 100 R1 steel wire reinforced hydraulic hose and so on.
Steel Wire Spiraled Hydraulic Hose
We supply complete steel wire spiraled hydraulic hose products, such as EN 856 4SH/4SP, SAE 100 R12/R13/R15 and R9.
.jpg)
Textile Reinforced Hydraulic Hose
We supply complete textile reinforced hydraulic hose products, such as EN 854 1TE/2TE/3TE, SAE 100 R3/R4/R6 textile reinforced hydraulic hoses.
We supply complete thermoplastic hydraulic hose products, including SAE 100 R7/R8/R14 thermoplastic hydraulic hose.
How to Produce High Pressure Rubber Hose?

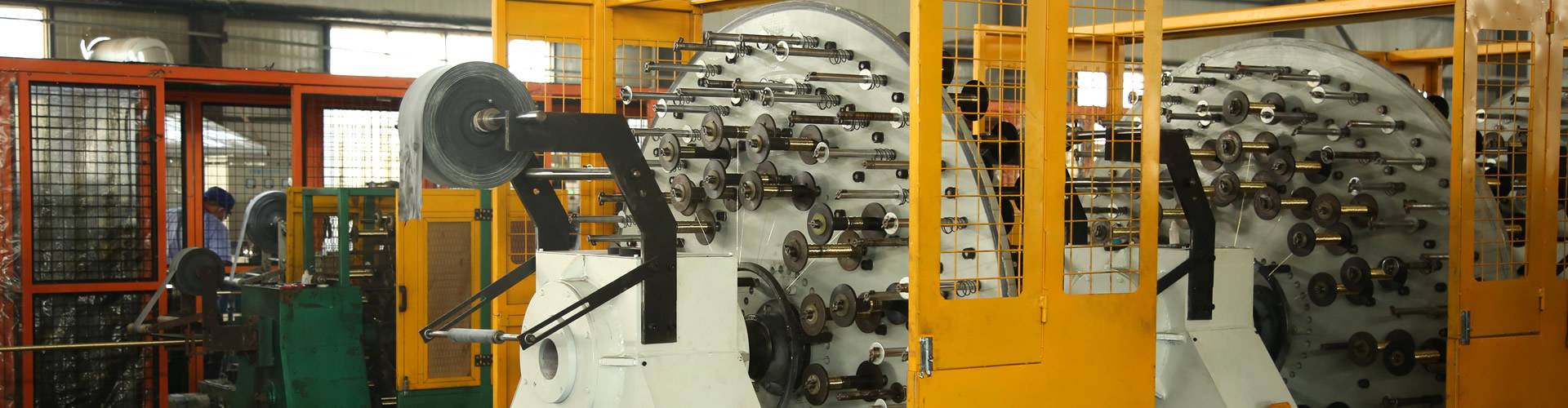

High pressure rubber hose is produced in a continuous processes, which is strictly controlled and standardized. Click to know production line.
How to Install High Pressure Rubber Hose
We have detailed installation tips of high pressure rubber hose. Meanwhile, right and wrong installation drawings help you fast and easy installation.
Technical Parameters of Wire Braid High Pressure Hose
In the following are the details of technical parameters of wire braid high pressure hose and we believe customers can have a better understanding of it.
